Azmeb Azmeb Door Side Tipper Lead

-Chassis constructed from 700 Grade high tensile steel plate and fabricated to Fully
Welded chassis inside and out

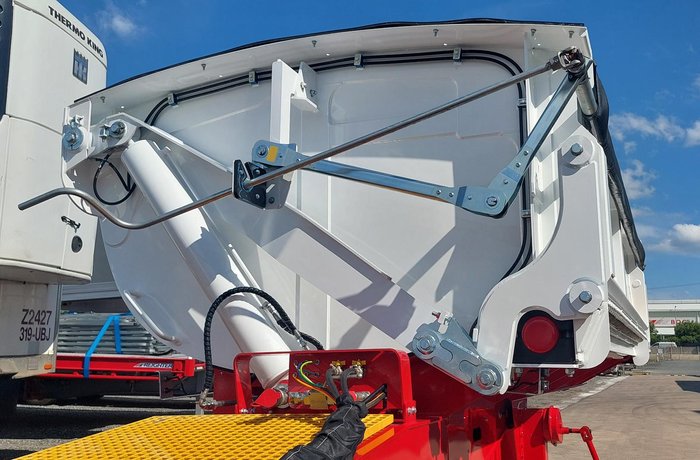

-Body & door constructed from 450 grade wear resistant high tensile plate with 700 grade high
tensile steel pressings. Door operated via mechanical arm from body lift cylinder. Remote
greasing points to hydraulic cylinder pivots

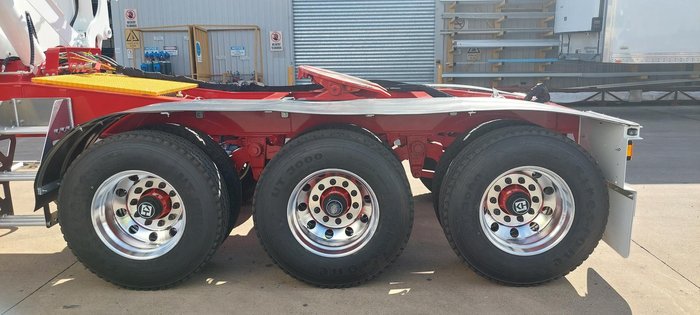

-K-Hitch axles with hubdometer fitted to centre axle.
-K-Hitch spring suspension.
-13 x 11R22.5 tyres and 13 x Alloy wheels.
-EBS brake kit.
-Hydraulics, 2 off double acting single stage 6" lift cylinders with 2 ½" piston, actuated via air
operated single spool valve with power beyond through steel pipes to Quick Release Hydraulic
Couplings, complete with hose kit. Tema 10000 hydraulic quick couplers.
-50mm King Pin with dual pin positions.
-Landing Legs, Maxus 2 speed manual.
-50mm K-Hitch greaseless turntable.
-Hella side marker and tail lamps.
